The purpose of the cam on the cam divider

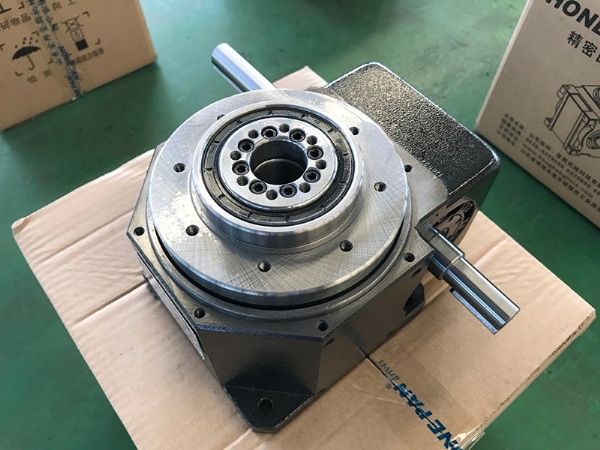

　　The cam divider is a mechanism that realizes intermittent motion. It has the characteristics of high indexing accuracy and stable operation, and is widely used in pharmaceutical machinery, food packaging machinery, etc. So what is the use of the cam on the cam divider? Let the editor of the manufacturer of intermittent precision cam divider take you to understand:

　　1. The movement of the valve stem rules the outline of the cam. When the cam profile with the changed vector diameter touches the flat bottom of the valve stem, the valve stem will reciprocate; and when the arc segment centered on the center of the cam reversal is in contact with the valve stem, the valve stem will remain stationary. move. Therefore, following the continuous rotation of the cam, the valve rod can obtain intermittent and regular movement as expected.

　　2. When the cylindrical cam is reversed, the side of the groove forces the swing follower to swing, thereby driving the tool holder connected to it to move. As for the movement rule of the tool holder depends on the shape of the groove.
